測速電機工作原理與使用范圍詳解

測速電機是輸出電動勢與轉速成比例的微特電機。測速電機的繞組和磁路經精確設計，其輸出電動勢E和轉速n成線性關系，即E=Kn，K是常數。改變旋轉方向時輸出電動勢的極性即相應改變。在被測機構與測速發電機同軸聯接時，只要檢測出輸出電動勢，就能獲得被測機構的轉速，故又稱速度傳感器。

測速電機的工作原理

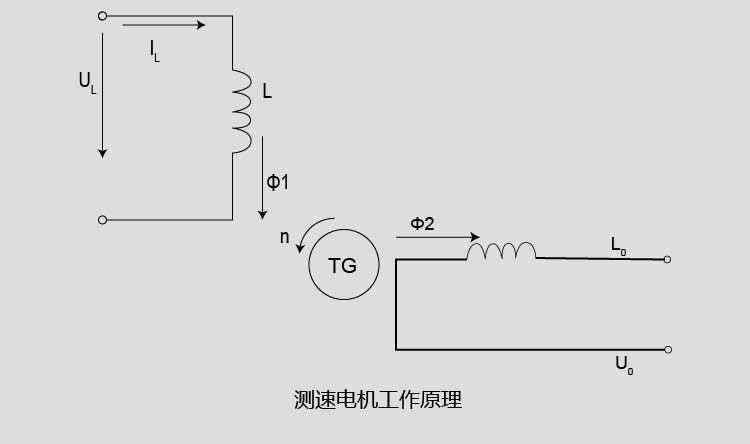

測速電機的工作原理如上圖所示。當轉子靜止時，勵磁繞組接到頻率和大小都不變的單相交流電源上，在勵磁繞組的軸線方向上產生一個按正弦規律隨時間變化的脈動磁通Φ1。由于磁通Φ1的方向與輸出繞組L。的軸線垂直，輸出繞組中不會產生感應電動勢，故輸出電壓Uo為零。當轉子旋轉時，轉子與脈動磁場Φ1有相對運動，轉子因切割磁通Φ1而產生感應電流，轉子的感應電流又產生磁通Φ2。磁通Φ1與Φ2的軸線相互垂直，Φ2的方向與輸出繞組軸線重合。因此，在輸出繞組中有感應電動勢產生，也就是有電壓Uo輸出。輸出電壓的大小與轉速成正比。當轉子反轉時，輸出電壓的相位也相反。

測速電機具有的特點：

1、測速發電機的輸出電壓信號，電壓量程可在10幾伏到幾百伏之間;

2、測速電機輸出信號頻率電壓隨著轉速變化，為-漸變信號，用一一個電壓表就可以進行觀測了;

測速發電機的使用范圍

（1）用做測速元件

（2）用做校正元件

（3）用做解算元件

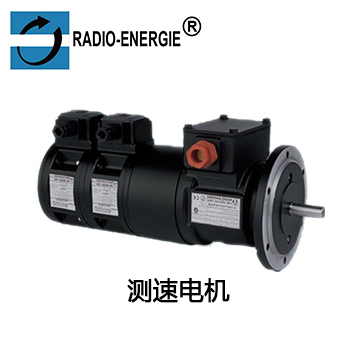

常用RADIO-ENERGIE測速電機型號：

RE.0444R1026/EG

RE.0444R1L26G

RE.0444R1L26A

RDC 14 MF 1X60 CA 160

RDC14MF0.01CA160

RDC14MF0.02CA160

RDC14MF0.04CA160

RDC14MF0.06CA160

RDC205P0.007CA127

RDC206SP0.018CA/BA

RDC210 D0.02CA

RDC210KE0.01CA160

RDC215MF0.06CA160

RE.0110S1CB0.002CA

RE.0315 CA碳刷

RE.0315 LT1B0.03CA/8X15P

RE.0315LJ1B0.03 CA

RE.0315LN1B0.02CA

RE.0315LN1B0.03CA

RE.0315LN1B0.04 CA

RE.0315LT1B0.03 CA

RE.0444 ATEX B 0.06EG 軸徑11mm，帶鍵槽

RE.0444 N1 C S 0,12 CA

RE.0444 N1B0.06EG配套碳刷

RE.0444 R1 ATEX B 0.06 CA

RE.0444L1B 0.06EG(11*30)

RE.0444L1B0.01 CA(11x30)

RE.0444L1B0.06CA / JT

RE.0444L1B0.06CA(11x30)

RE.0444L1B0.06CA(7*30)

RE.0444L1B0.06EG(7*30)

RE.0444N1B0.04EG(11*30)

RE.0444N1B0.06CA (7X30)

RE.0444N1B0.06EG IP55 7x30

RE.0444N1B0.06EG(11*30)

RE.0444N1B0.06EG(7X30)

RE.0444N1B0.15CA/11X30

RE.0444N1B0.15EG

RE.0444N1B0.15EG(7*30)

RE.0444N1B0.1EG (11*30))

RE.0444N1CB0.06 CA

RE.0444N1CB0.06CA(7X30)

RE.0444N1CS0.06 CA

RE.0444N1S0.12EG

RE.0444NV1B0.06CA(11X30mm)

RE.0444R1B0.02CA

RE.0444R1B0.02EG(11x30)

RE.0444R1B0.03EG

RE.0444R1B0.06CA(11X30)

RE.0444R1B0.06EG(11*30)

RE.0444R1B0.06EG(7x30)

RE.0444R1B0.06EG/JT

RE.0444R1B0.1CA

RE.0444R1B0.1EG

RE.0444R1B0.2CA 雙軸7mm/11mm

RE.0444R1B0.2CA(11X30)

RE.0444R1B0.2CA/SUP

RE.0444R1B0.2CA/SUP L&L850

RE.0444R1CB0.06CA(11x30)

RE.0444R1CB0.06EG (11x30)

RE.0444R1CB0.2 CA

RE.0444R1SIECB0.06 CA

RE.0444R2B2X0.06CA(11*30)

RE.0444R2B2X0.06EG(11*30)

RE.0444R2S2X0.06CA

RE.0444RT1B 0.06CA

RE.0444RT1B 0.06EG(11*30)

RE0444 NV1B0.06CA(7X30mm)

RDC16MF0.01CA110

RDC207 PE 0.02 CA 140

RE.0110S1CB0.001CA

RE.0315LN1S0.02CA

RE.0444N1B0.1EG(7X30mm)

RE.0444N1S0.06EG

RE.0444N1S0.06EG(11*30)

RE.0444NT1B0.06 CA(7X30)

RE.0444R1B0.06CA-S01

RE.0444R1S0.06 EG

RE.0444R2B2X0.06 CA / JT

RE.0444SR1B0.06 CA / JT / SUP GHR9

RE.0588US1CB0.06CA

RKI-C-F150

RMH9SP-T30B-25-S10T

RONE-160758DN (SN:9920115)

RONE-50025-4768K(SN:7726805 )

RONE-70047-2269K(SN:8014109)

RPEO-1418-C900115 (SN:704950
